Product Overview

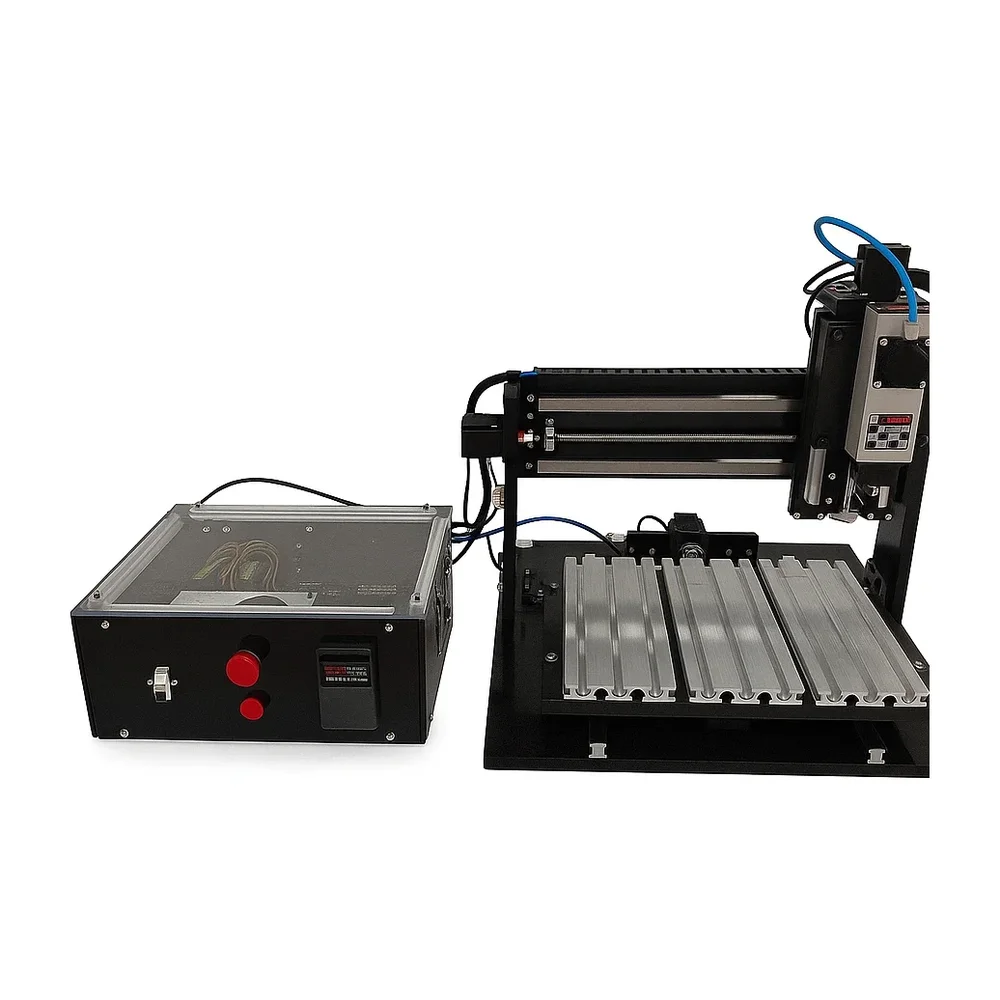

The Pcbproto 5040 3-Axis PCB Prototyping CNC Machine offers a 500x400mm working area, designed for efficient large-format PCB manufacturing and electronics R&D. This desktop/tabletop type machine features simultaneous 3-axis motion with full interpolation, supporting single and dual-layer PCBs.

Detailed Description

The Pcbproto 5040 3-Axis PCB Prototyping CNC Machine is engineered for precision and reliability in electronics manufacturing. Featuring a generous 500x400mm working area and 100mm Z-axis travel, this desktop/tabletop type machine supports simultaneous 3-axis motion with full interpolation. It is equipped with a 0.73 kW / 1 hp spindle capable of up to 24,000 RPM, ensuring fine detail work and efficient material removal. The machine utilizes Hiwin/THK 16mm rolled ball screws and 20mm linear guides for all axes, driven by Nema 23 & 24 stepper motors, ensuring consistent performance. Control is managed via an Arduino controller, operating through USB with Windows 10/11 systems, and includes manual tool change (MTC) with ER20 collets. This CNC machine is ideal for electronics circuit R&D labs, educational institutions, and small to medium-scale PCB manufacturing units requiring in-house prototyping capabilities. It supports applications including high-power PCB, analog PCB, and digital PCB fabrication, making it suitable for developing complex prototype boards. The system is compatible with industry-standard file formats such as Excellon, Gerber, and G-code, facilitating seamless integration into existing design workflows. Its robust carbon fiber/fiberglass composite superstructure ensures durability and stability for continuous operation. Manufactured with up to 80% Made-in-India parts, this machine is ISO 9001 and CE certified, ensuring adherence to international quality and safety standards. It ships fully assembled for plug-and-play installation, requiring a single-phase 220V/110V, 16 Amp power supply. The product comes with a 1-year full parts warranty and a lifetime warranty on the composite superstructure, with extended warranty options available for up to 10 years

Product Details

Key Features

• 3-Axis Simultaneous Motion: Provides full interpolation for complex PCB prototyping and intricate designs.
• 500x400mm Working Area: Accommodates large-format PCBs, enhancing production capacity for bigger boards.
• 0.73 kW / 1 hp Spindle Power: Delivers up to 24,000 RPM for precise drilling, engraving, and routing on various materials.
• Desktop/Tabletop Type Machine: Compact footprint suitable for lab setups and electronics manufacturing environments.
• Manual Tool Change (MTC) with ER20 Collet: Allows for flexible tool selection and quick changes for diverse operations.
• Arduino Control System: Operates via USB with Windows 10/11, offering user-friendly machine control.
• Hiwin/THK 16mm Rolled Ball Screw & 20mm Linear Guides: Ensures high accuracy and smooth movement across all axes.
• Nema 23 & 24 Stepper Motors: Provides reliable and precise motion control for consistent machining results.
• ISO 9001 Certified: Demonstrates adherence to international quality management system standards.
• CE Certified: Complies with European safety, health, and environmental protection requirements.

Applications & Use Cases

• Electronics Circuit R&D: For developing and testing new PCB designs and prototypes in research laboratories.
• High-Power PCB Manufacturing: Suitable for fabricating boards requiring robust power handling capabilities.
• Analog and Digital PCB Prototyping: Ideal for creating single and dual-layer boards for various electronic applications.
• Educational Institutions: Used for hands-on training and project work in engineering and electronics programs.
• Small to Medium Scale Production: Enables in-house rapid prototyping and short-run production of PCBs.
• Material Processing: Capable of working with ABS, polycarbonate, acrylic, carbon fiber, and wood for diverse projects.
